M8 Pro Transparent Film Display P5

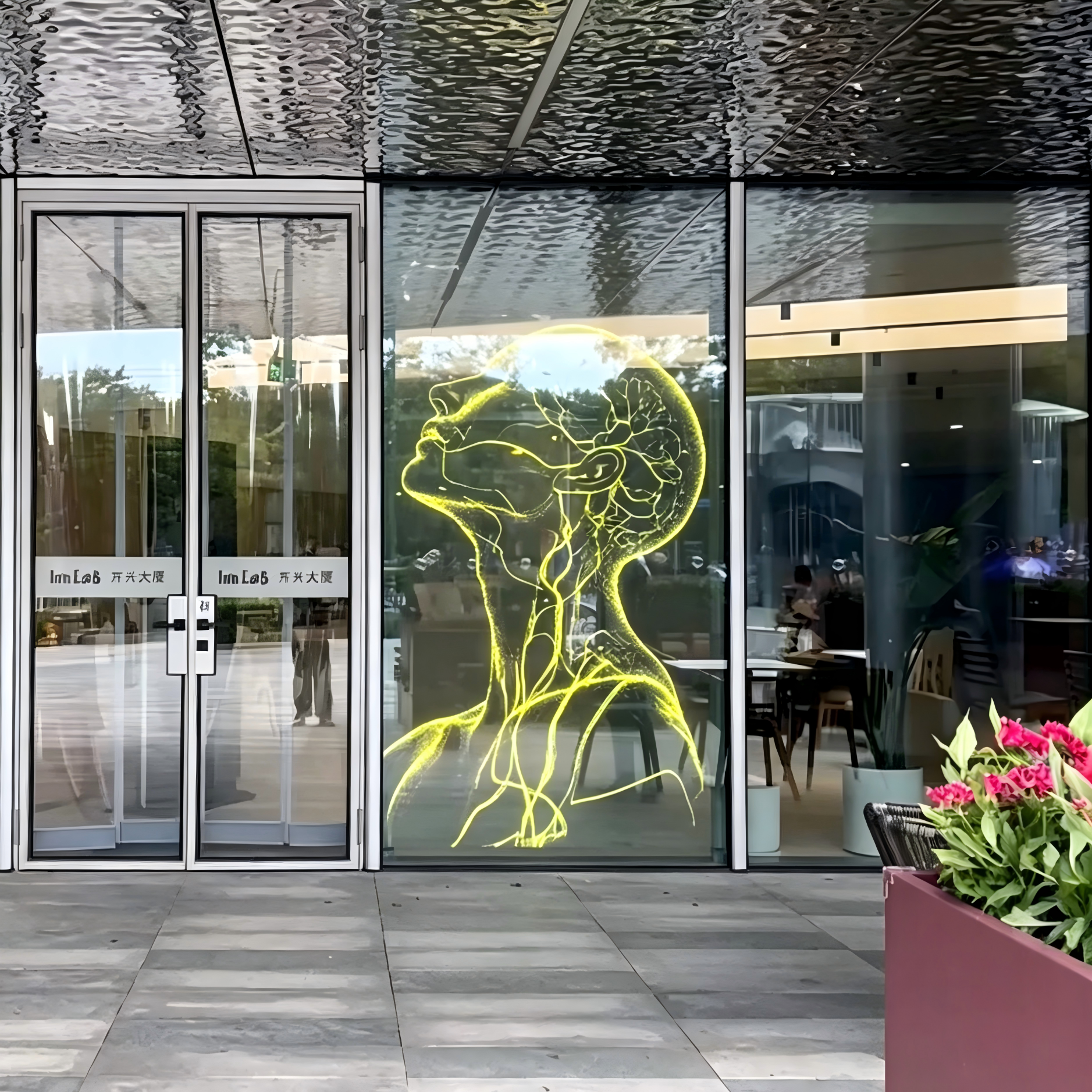

5*5mm Pixel pitch, optimal viewing distance ≥5m. Provides fine details at close range, suitable for high-end commercial display windows, jewelry and watch showcases, brand flagship stores, and other scenarios requiring close-up viewing and high image quality.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Product Module | P5 | LED Type | SMD1515 |
| Module Size (L*W) | 1000*320mm (customizable) | Pixel composition | R1G1B1 |
| Pixel Density | 40000 dots/㎡ | Module Pixel | 200*64 |
| Pixel Pitch | 5*5mm | Weight | 4kg/㎡ |
| Thickness | 2mm | Average Power Consumption | 300W/㎡ |
| Peak Power Consumption | 900W/㎡ | Optimal Viewing Distance | ≥5m |
| Screen Brightness | ≧2000CD/㎡ | Refresh rate | Static |
| Grayscale level | 16 bits | Life time | ≥100000hrs |
| Transmittance | ＞75% | Input Voltage | AC100-240V |
| Viewing Angle | Horizontal 160±10°Vertical 160±10° | Control System | Synchronous / Asynchronous (Nova / Colorlight) |
| Operating Environment | -20~+45℃ 10%-80% noncondensing |
Storage Environment | -30~+80℃ 10%-65% noncondensing |
