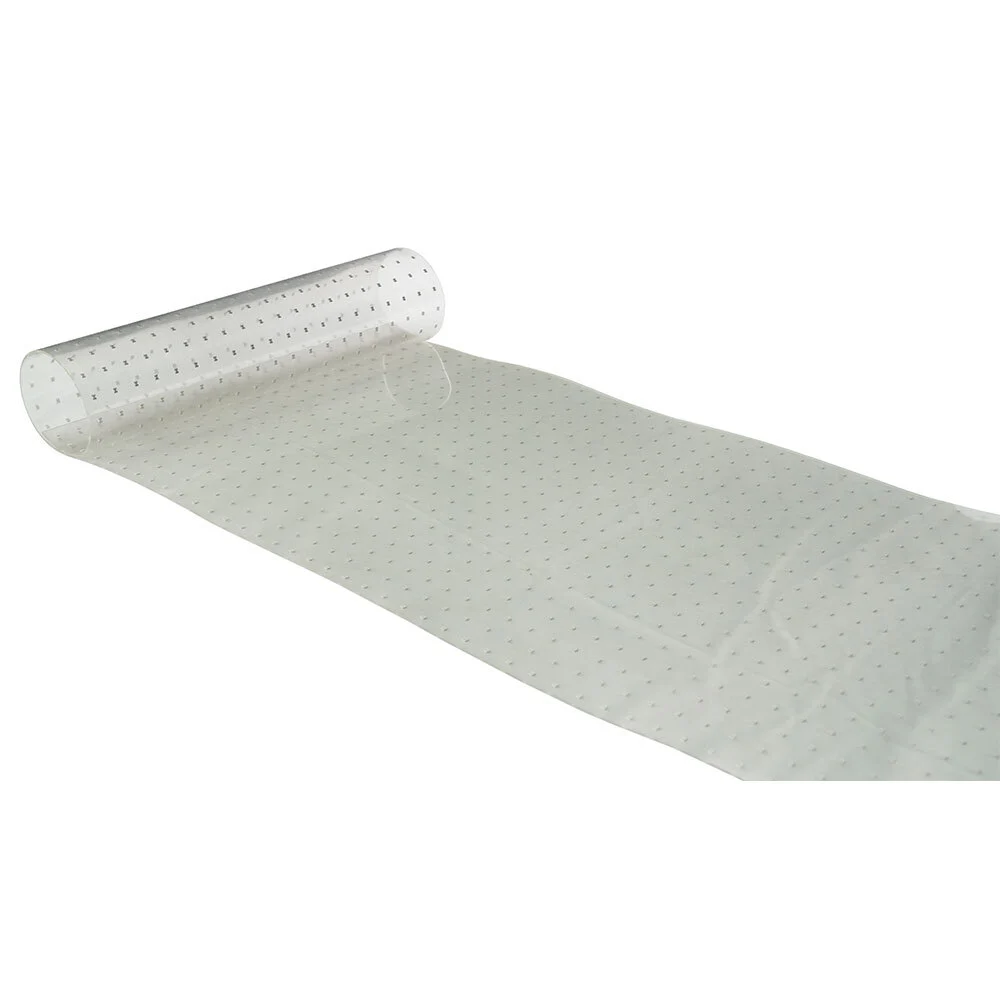

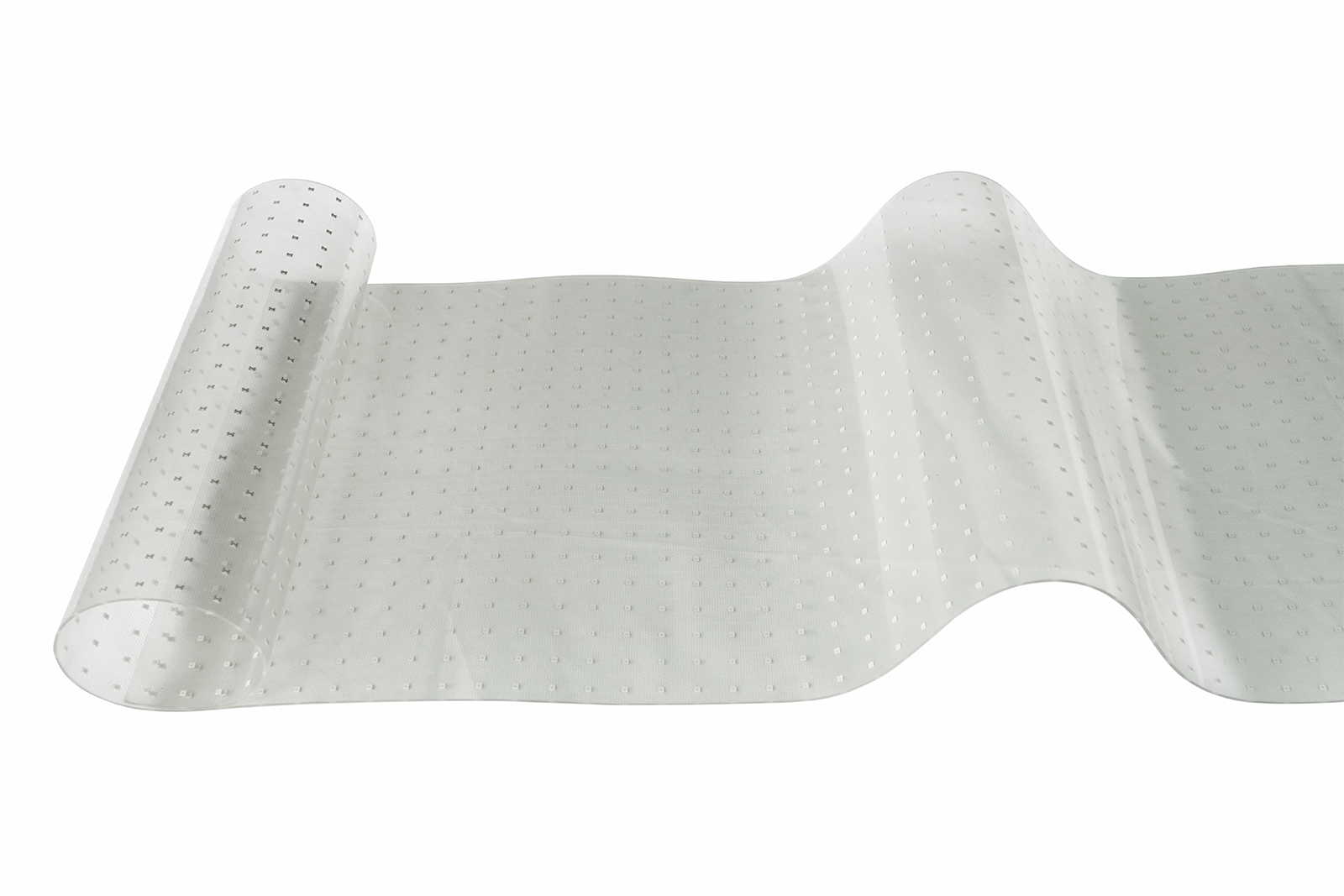

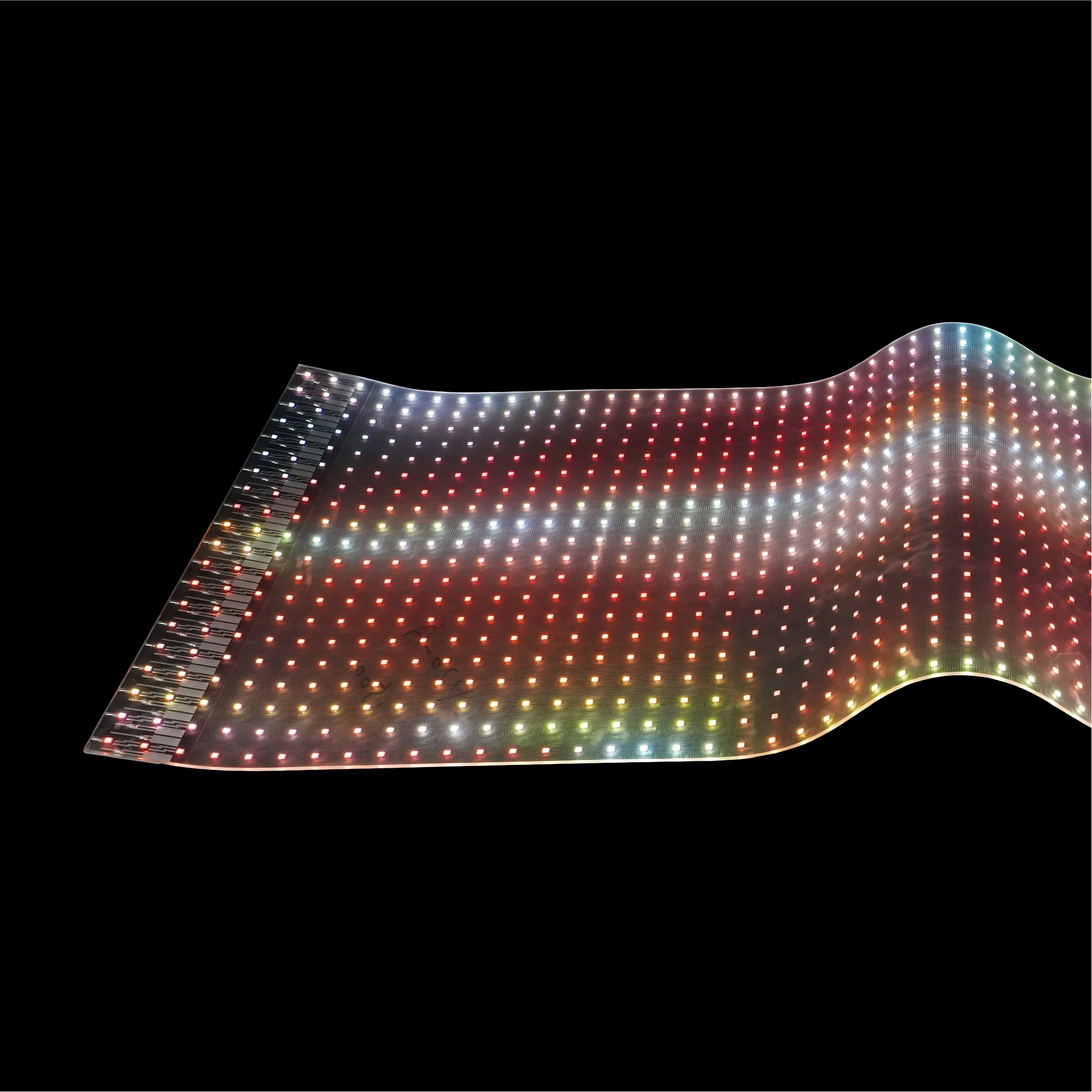

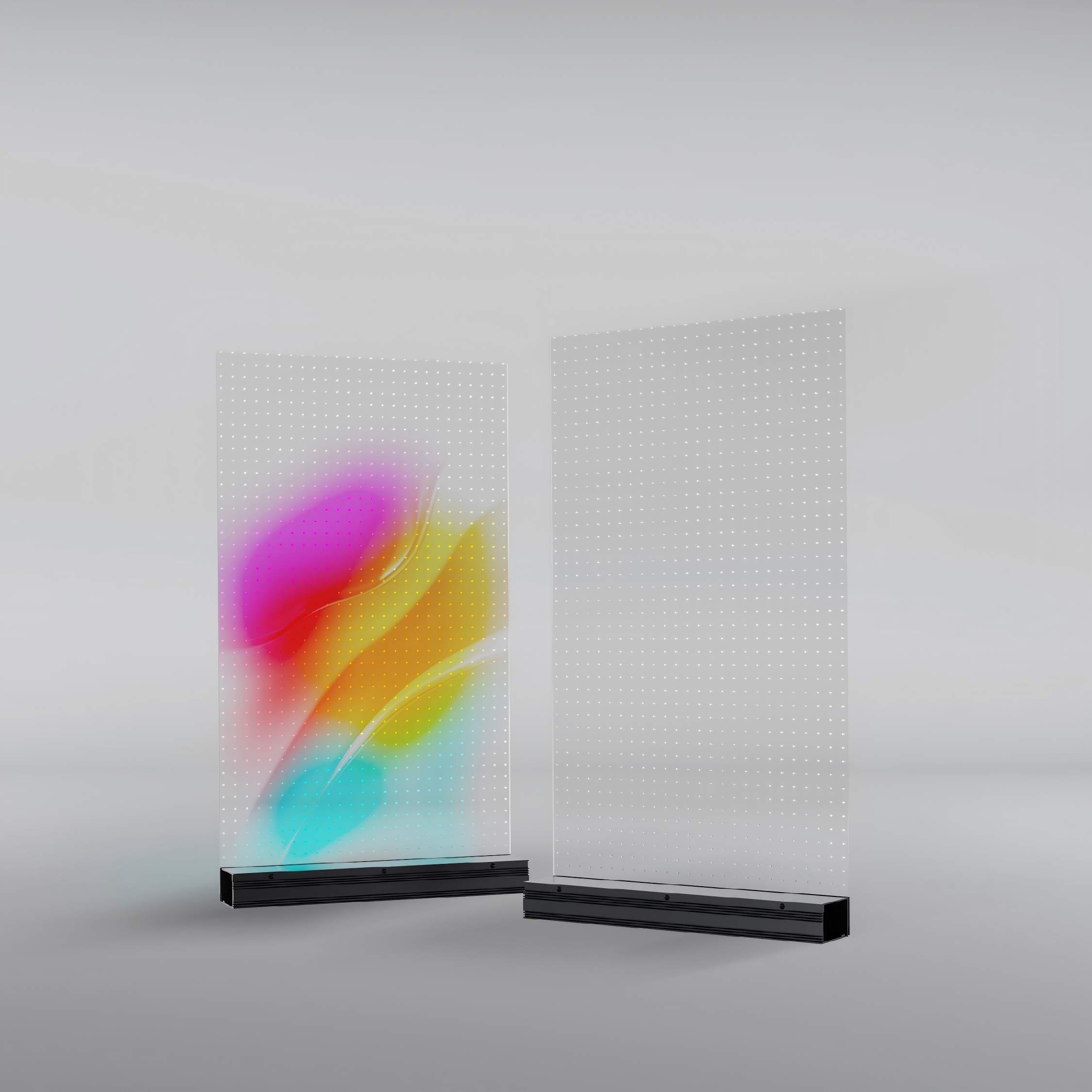

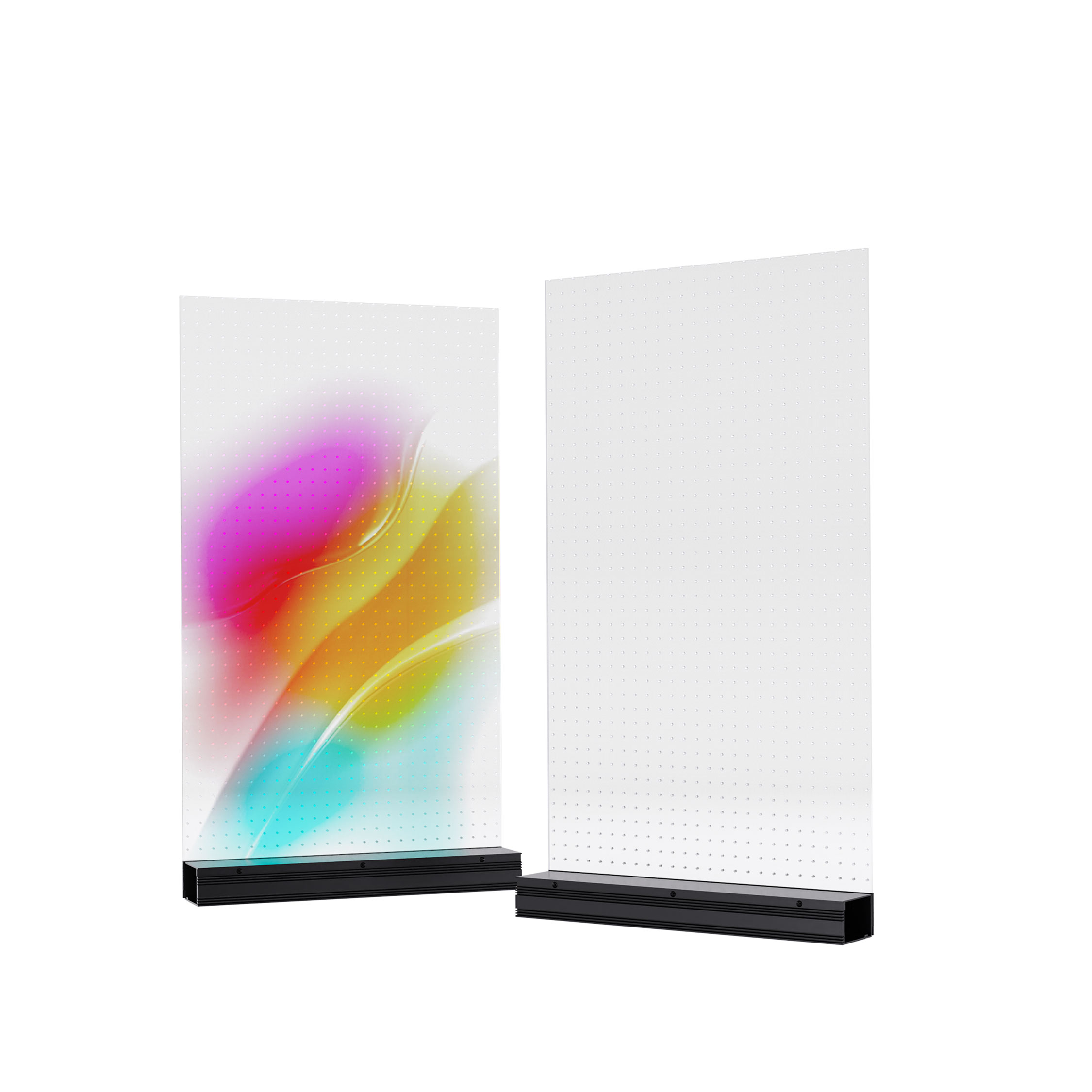

M8 Pro Transparent Film Display P20

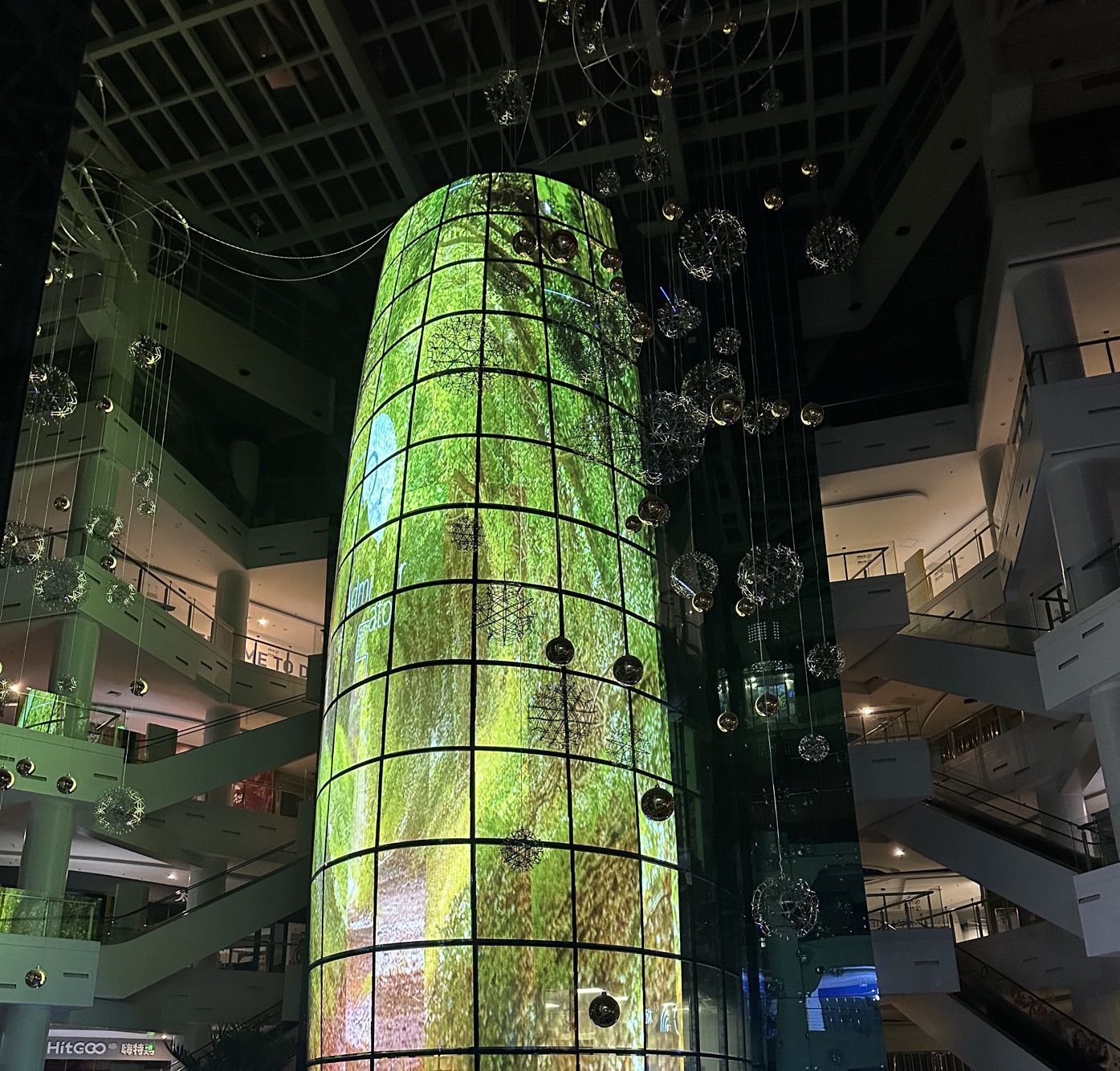

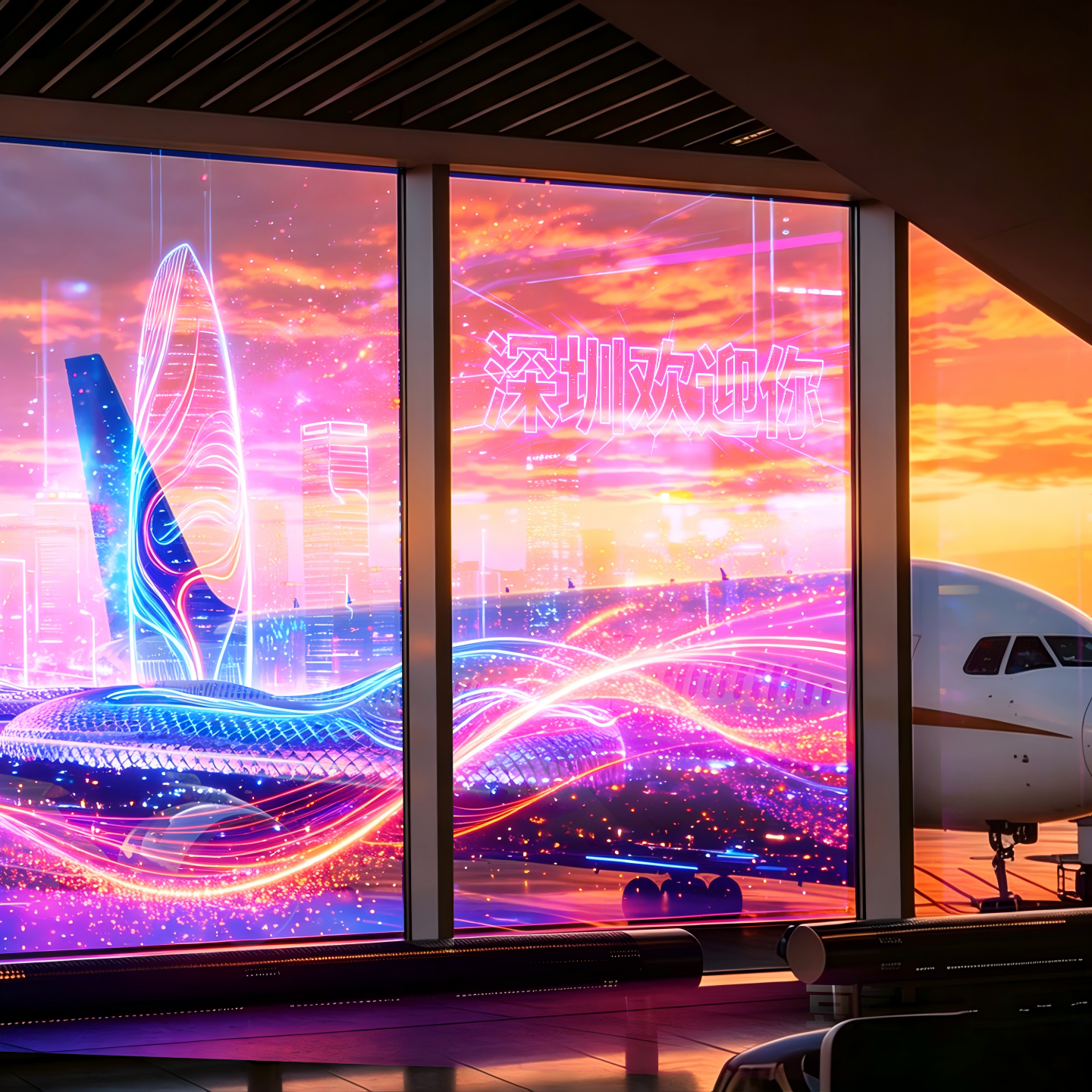

20*20mm Pixel pitch, optimal viewing distance ≥20m. Suitable for super-large urban landmark facades, large venue transparent railings, and high-transparency creative display projects, balancing information presentation with the building's original appearance.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Product Model | P20 | LED Type | SMD1515 |
| Module Size (L*W) | 1200*400mm (customizable) | Pixel composition | R1G1B1 |
| Pixel Density | 2500 dots/㎡ | Module Pixel | 60*20 |
| Pixel Pitch | 20*20mm | Weight | 4kg/㎡ |
| Thickness | 2mm | Average Power Consumption | 130W/㎡ |
| Peak Power Consumption | 400W/㎡ | Optimal Viewing Distance | ≥20m |
| Screen Brightness | ≧1000CD/㎡ | Refresh rate | Static |
| Grayscale level | 16 bits | Life time | ≥100000hrs |
| Transmittance | ＞95% | Input Voltage | AC100-240V |
| Viewing Angle | Horizontal 160±10° | Control System | Synchronous / Asynchronous (Nova / Colorlight) |
| Operating Environment | -20~+45℃ 10%-80% noncondensing | Storage Environment | -30~+80℃ 10%-65% noncondensing |
