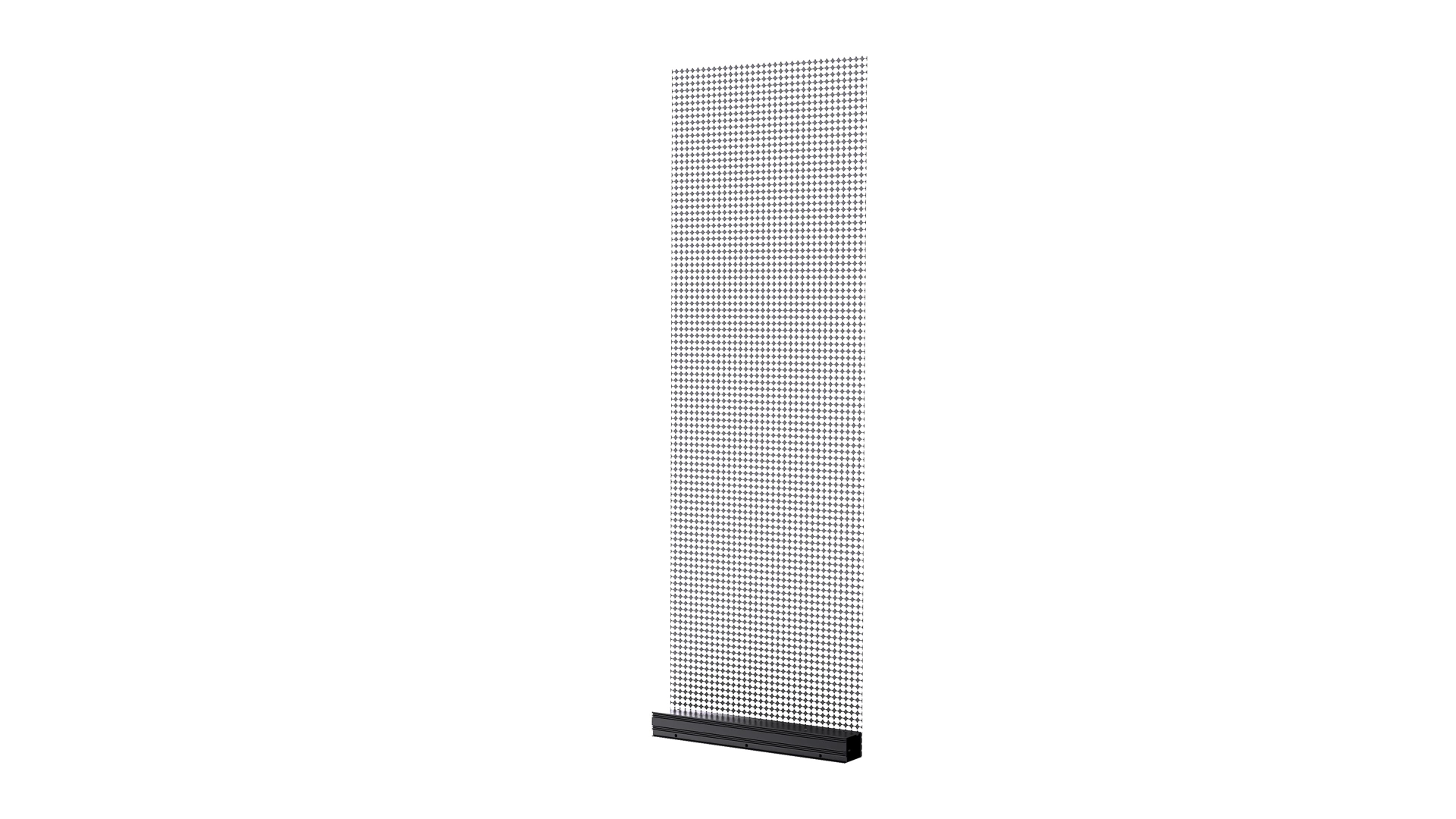

LED Flexible Holographic Display P6
6*6mm Pixel Pitch, viewing Distance ≥6m. High transparency and flexibility: Combines stereoscopic light fields with structural adaptability for large-scale curved installations like media walls.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Product Model | P6 | LED Type | SMD2020 |
| Module Size (L*W) | 1000*250mm (customizable) | Pixel composition | R1G1B1 |
| Pixel Density | 25600 dots/m² | Module Pixel | 160*40 |
| Pixel Pitch | 6.25*6.25mm | Weight | 3-5kg/㎡ |
| Thickness | 3mm | Average Power Consumption | 250W/㎡ |
| Peak Power Consumption | 700W/㎡ | Optimal Viewing Distance | ≥6.5m |
| Screen Brightness | 1500-2500 CD/㎡ | Refresh rate | Static |
| Grayscale level | 16 bits | Life time | ≥100000hrs |
| Transmittance | ＞85% | Input Voltage | AC100-240V |
| Material | Aluminum Profile | IP Rating | IP20 |
| Viewing Angle | Horizontal 120°±10°Vertical 120°±10° | Control System | Synchronous / Asynchronous (Nova / Colorlight) |
| Operating Environment | -10～+45 ℃ / 10～90 %RH | Storage Environment | -40～+65 ℃ / 10～90 %RH |
